Our gear units, motors and gearmotors are ready to face any danger.
Directive 94/9/EC or as of April 20, 2016 EU Directive 2014/34/EU
governs explosion protection for all types of devices on the European market.
The IECEx certification agreement
ensures mutual recognition of testing for explosion-proof equipment.
Hazardous Location - North America
certifies products for the North American market with the CSA C/US mark.
Explosion-proof products available worldwide
You need to install explosion-proof products or your system is in a potentially explosive atmosphere? Our products comply with the most important directives and standards worldwide.
Special measures are required for use of systems and machinery in areas with potentially explosive air/gas or air/dust mixtures. Applicable standards and regulations govern the use of equipment within existing hazard zones. The complex, internationally applicable requirements for use of gearmotors, motors or drive electronics in applications in potentially explosive atmospheres are defined for the global market in the most important directives and standards:
- 94/9/EG (ATEX)
- HazLoc-NA® (NEC500 and C22)
Our gearmotors meet the defined requirements for equipment used in potentially explosive atmospheres. Unlike the internationally recognized IECEx regulations or the North American regulations (HazLoc-NA®), the EU directive 94/9/EC (ATEX) also includes non-electrical equipment in explosion protection. We will gladly support you in selecting the appropriate device features – a checklist and inquiry form are available for download:
- To the inquiry form with checklist for explosion-proof gearmotors according to 94/9/EG (ATEX) and IECEx (PDF, 2.5 MB)
But which standards and directives do you need to comply with for worldwide use of your system? All the details, the precise worldwide assignment, and an overview of the zones and assignment to equipment categories or EPL (Equipment Protection Levels) are shown here.
Safe useDue to compliance with worldwide directives and standards for explosion-proof products.
Outstanding versatilityBecause our modular system offers numerous explosion-proof motors, gear units and gearmotors.
Worldwide availabilityBecause our explosion-proof products comply with 94/9/EC (ATEX), IECEx and/or HazLoc-NA®.
Certified qualityThanks to involvement in the creation of standards, continuous quality control, and innovative research and development.
The directives and standards in detail:
The IECEx certification agreement
Worldwide platform for mutual recognition of certifications
The IECEx certification agreement is seen as a worldwide platform for the mutual recognition of test results for obtaining certification or approval for explosion-proof electrical equipment. It is based on the "IECEx 01 IEC Scheme for the Certification to Standards for Electrical Equipment for Explosive Atmospheres (IECEx Scheme) – Basic Rules" and "ECEx 02 IEC Scheme for the Certification to Standards for Electrical Equipment for Explosive Atmospheres (IECEx Scheme) – Rules of Procedure." These two documents and other IECEx working documents are available free of charge in the IEC online shop at www.iecex.com.
Objectives of the IECEx agreement
The agreement is intended to promote international trade in explosion-proof electrical equipment by eliminating the need for duplicate testing and certifications. The fundamental purpose of the agreement is to verify compliance with the IEC standards for electrical equipment in potentially explosive atmospheres in an internationally recognized form. It must be ensured that these standards are applied by test laboratories (ExTL, Ex-Testing Laboratories) and certification bodies (ExCB, Ex-Certification Bodies) so that assessment of a product's compliance with the standards provides the same results in every country. Our products are certified by the PTB as ExCB in accordance with IECEx, and are available in EPL .b or .c.
Australia and New Zealand:
Australia and New Zealand recognize the IECEx certification directly. In addition, the motors must meet the efficiency requirements defined in MEPS 2006. The motors of the EDR. series meet all these requirements and are registered according to MEPS.
In South Korea, additional KOSHA certifications are also required. Motors of the EDR.. series are certified for gas or dust in EPL b and c. Motors of type EDRE are also registered and certified according to REELS.
Brazilian regulations require certificates of conformity (CoCs) issued by the National Institute of Metrology, Quality and Technology, INMETRO. The IECEx CoC is not valid in Brazil, even though ExTRs are recognized and form part of the INMETRO CoC. Areas exposed to explosion hazards are defined for the Brazilian market in the regulations Nº 179, from May 2010, and Nº 89, from February 2012.
Identification of the products:
- IECEx mark of conformity for motors of the EDR.. series with IECEx certificate of the PTB
- The name and address of the manufacturer
- The manufacturer's type designation
- A serial number
- The name or ID of the authority that issues the certificate, and the certificate ID in the following form: the last two numbers of the year it was issued, followed by a period, followed by a unique four-digit series of characters for the certificate in that year (e.g. IECEx PTB 11.0041/01)
- The relevant Ex marking for potentially explosive gas atmospheres or for potentially explosive dust atmospheres
- All additional information for the relevant protection types
CSA mark for the North American market
HazLoc-NA® (Hazardous Location Northern America) is synonymous with explosion protection in North America, just like ATEX is for Europe and IECEx is for many other countries.
Unlike ATEX and IECEx where the areas in which a potentially explosive atmosphere may be present are divided into zones (0, 1, 2, 20, 21, 22), NEC500 and C22.2 make a distinction between division 1 and division 2, as well as between class I for gas and class II for dust.
Our products for the North American market for use in potentially explosive atmospheres in division 2 are certified by the CSA and bear the CSA logo.
This certification confirms that the motors and options were tested and that they met the applicable standards for safety and/or performance, including the relevant standards defined or managed by:
- The Canadian Standards Association (CSA)
- The American National Standards Institute (ANSI)
- Underwriters Laboratories (UL),
- NFPA70 (the National Fire Protection Association)
CSA marks are accepted by many manufacturers, retailers, regulators and inspectors in the electrical, gas, building and plumbing sectors throughout the U.S. and Canada.
The EDR.. series motors comply with the two main standards, NEC500 and CSA22.2, as well as the relevant efficiency requirements for the U.S. and Canada.
Identification of the products:
- CSA mark with fulfillment of efficiency requirement
- Master Contract No. "170602"
- Type designation
- Rated electrical values in volts, horsepower or kW, ampere and rpm
- Serial number
- Hazardous Location Designation
- CLASS I, DIVISION 2, GROUPS A, B, C & D; Temperature Code T3C or T3
- CLASS II, DIVISION 2, GROUPS F & G.
- Insulation class
- Power factor
- Degree of protection (totally enclosed, fan-cooled)
- Ambient temperature range
- Manufacturing location
- Electrical data of the brake (voltage, current)
Fundamental information about explosion protection
Equipment groups, equipment categories and zones
The relationship between equipment groups, equipment categories and zones
Directive 94/9/EC only defines the basic requirements. The product-specific requirements are defined in the various applicable standards. At the international level, IEC 60079-0 ("Explosive atmospheres - Equipment - General requirements") introduced the EPL (Equipment Protection Level). These Equipment Protection Levels identify suitability of equipment for potentially explosive areas according to the zone classifications.
With the new version of EN 60079-0, issued in 2010, EPLs were also incorporated into European standards. The equipment must be designed with explosion protection measures of different levels depending on the category or EPL.
|Gas (G)||Dust (D)|
|Use in zone
|Use in zone
Gas groups, dust groups and use of equipment
Group II is reserved for devices for areas with potential risk of gas explosions. Electrical equipment in equipment group II is additionally divided into explosion groups IIA, IIB and IIC. The hazard increases from A to C.
are divided into additional subgroups:
• IIIA – flammable lint
• IIIB – non-conductive dusts
• IIIB – conductive dusts
The expansion of the standards also changes the Ex marking of motors that must be specified on the motor nameplate and elsewhere.
|Protection level||Equipment in the group|
Overview of explosion-proof equipment
The following table describes the assignment of explosion-proof equipment to equipment group II:
|Equipment group II
With potentially explosive atmospheres due to gas or dust
|Potentially explosive atmosphere1)||G||D||G||D||G||D|
d, e, i, p
SEWEURODRIVE only offers products in equipment group II for use in zones 1 and 2, as well as 21 and 22.

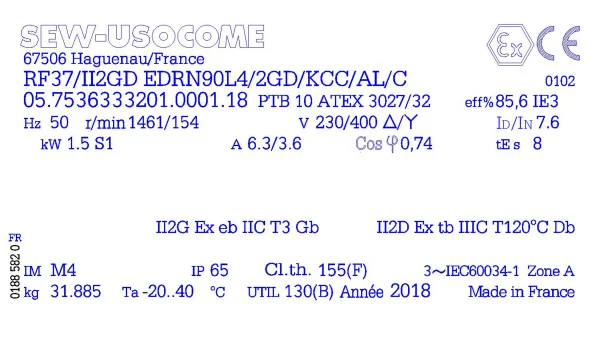

Ex markings for motors
We provide gearmotors and motors for use in potentially explosive atmospheres in accordance with the relevant European standards and IEC regulations. This means that the drives can be used both in the European Union, and in countries that recognize IECEx. This also applies to options and accessories in the explosion-proof version.
